3K Laser -- laser and automation intelligent equipment solutions provider

tel:
sales@3klaser.com
Desktop laser marking machine
  • Description
  • Config
  • Technical

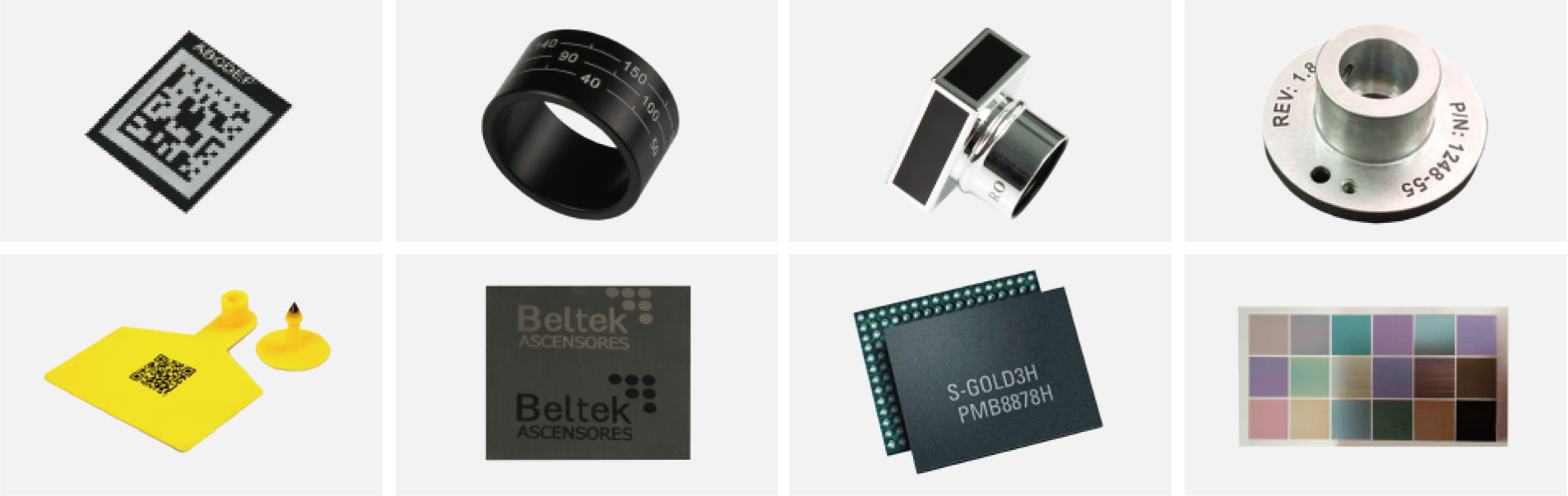

  • Samples
  • Video
  • Download

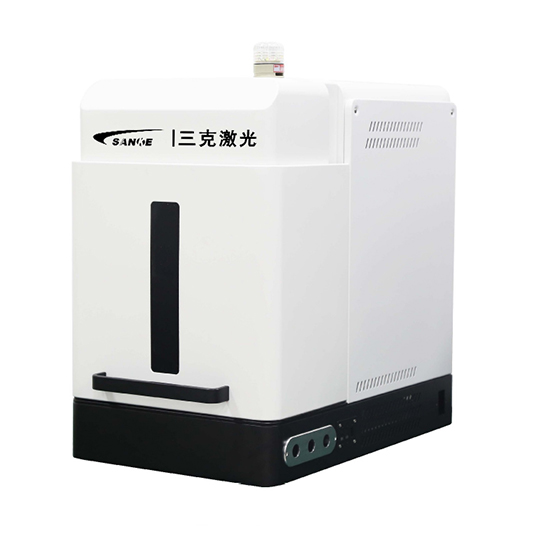

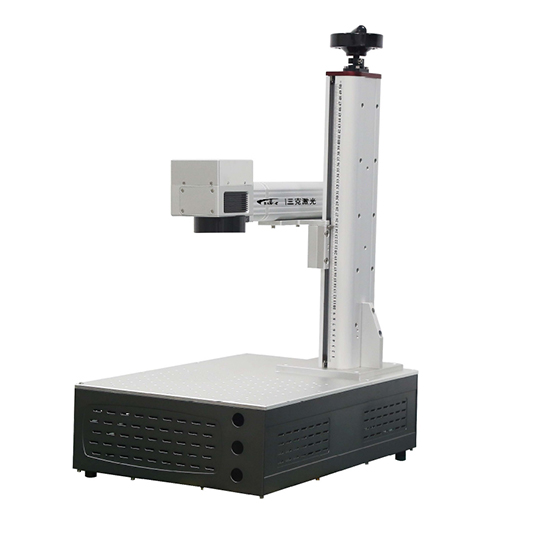

Equipment introduction:

The desktop fiber laser marking machine adopts fiber laser and galvanometer system, which is simple, light, flexible and convenient. It can be used for most common laser marking applications, such as characters, text, graphics, logo, QR code, etc. Light, suitable for small space applications.


Applicable materials:

Metal and various non-metallic materials, high hardness alloys, oxides, electroplating, coating, ABS, epoxy resin, ink, ceramics, engineering plastics, etc.


Applicable industry:

Plastic transparent button, integrated circuit (IC), IC chip, digital product parts, precision machinery, jewelry, sanitary ware, measuring tools, watch glasses, electrical appliances, electronic components, hardware accessories, hardware tools, mobile communication components, steam High-precision product identification such as motorcycle parts, plastic products, medical equipment, building materials and pipes.


Product NameItemsBrandQtyRemark
Handhold laser marking machineFrame Structure3K Laser1 Setas Fig
Laser GeneratorIPG、SPI、V-Gen、 Nerfurn、JPT、MAX、Raycus(Option)1 Set
GalvanometerChina or Import (Option)1 Set
software and Control CardJCZ or Samlight1 Set
PCIndustrial Computer1 Set
Display screenLED1 Set


Performance/ModelSK-F20SK-F30SK-F50SK-F100
Laser Output Power20W30W50W100W
Wavelength1064nm1064nm1064nm1064nm
Beam Quality M2<1.3<1.3<1.3<1.3
Laser Q-Switch Frequency20kHz~200kHz30kHz~200kHz50kHz~200kHz50kHz~200kHz
Marking Area100×100~200x200mm可選100×100~200x200mm可選100×100~200x200mm可選100×100~200x200mm可選
Marking Depth≤1mm≤1.5mm≤2mm≤2mm
Machine Power800W800W800W800W
Min line width0.03mm0.04mm0.05mm0.06mm
Repeatability Precision±0.0001mm±0.0001mm±0.0001mm±0.0001mm
Voltage220V±10% / 50Hz /2.5A220V±10% / 50Hz /2.5A220V±10% / 50Hz /2.5A220V±10% / 50Hz /2.5A
Machine Dimension750mm×600mm×1400mm750mm×600mm×1400mm750mm×600mm×1400mm750mm×600mm×1400mm
Cooling SystemAirAirAirAir
